Modal

TIP

For general recommendations on modal window content styles, refer to Content in modal window.

Description ​

Modal window is a modal dialog that appears on top of the page, and shows an important information or request a response from the user.

It always disables user interaction with the main window but keeps it visible. The modal window remains on the screen until the user performs the required action or closes the window.

TIP

🐈 A modal dialog is like my cat, Emma – who meows at 7am every morning to prompt me to feed her. I might be trying to sleep or get ready for the day, but my cat will place herself in front of me, then meow louder and incessantly until I look at her. I have to stop what I am doing to address the cat immediately if I ever hope to finish my task.

Article at NNGroup

Use modal window:

  • To show secondary data. For example, settings, small forms to fill out, step-by-step actions, detailed information about any data.
  • To draw attention to a specific request or task. For example, confirming an operation, adding data.
  • To focus on critical information that requires the user's attention. For example, local news, limiting, deleting an element, or losing information.
  • To view enlarged image or video.

Don't use modal window:

  • To notify of an error in the interface or system.
  • To show content that is required for the user to complete the main task in the interface.

TIP

If you want to hide a lot of information in the modal window, this component may not be the best solution. Consider using FullscreenModal or even a separate page.

Don't show modals before the user has interacted with the interface. Modal windows with information about limits are the exception in this case.

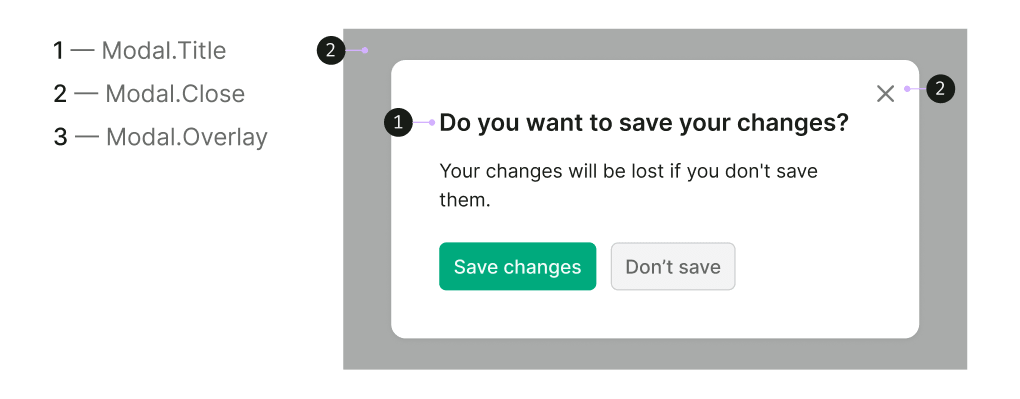

Component composition ​

The Modal window consists of the following:

  • Modal.Window.
  • Modal.Title.
  • Content.
  • Modal.Close.
  • Modal.Overlay.

We have several modal window types in the design system:

Container styles for Modal window
StylesAppearance example
border-radius: var(--rounded-large), padding: var(--spacing-10x)
Close button styles for Modal window
StylesAppearance example
Close icon uses M size, --icon-secondary-neutral token for the default color, and changes its color using CSS filter to the darker one in hover state.
Paddings from top and right to the Close icon is 12px.modal close button
The target area is 48px * 48px.

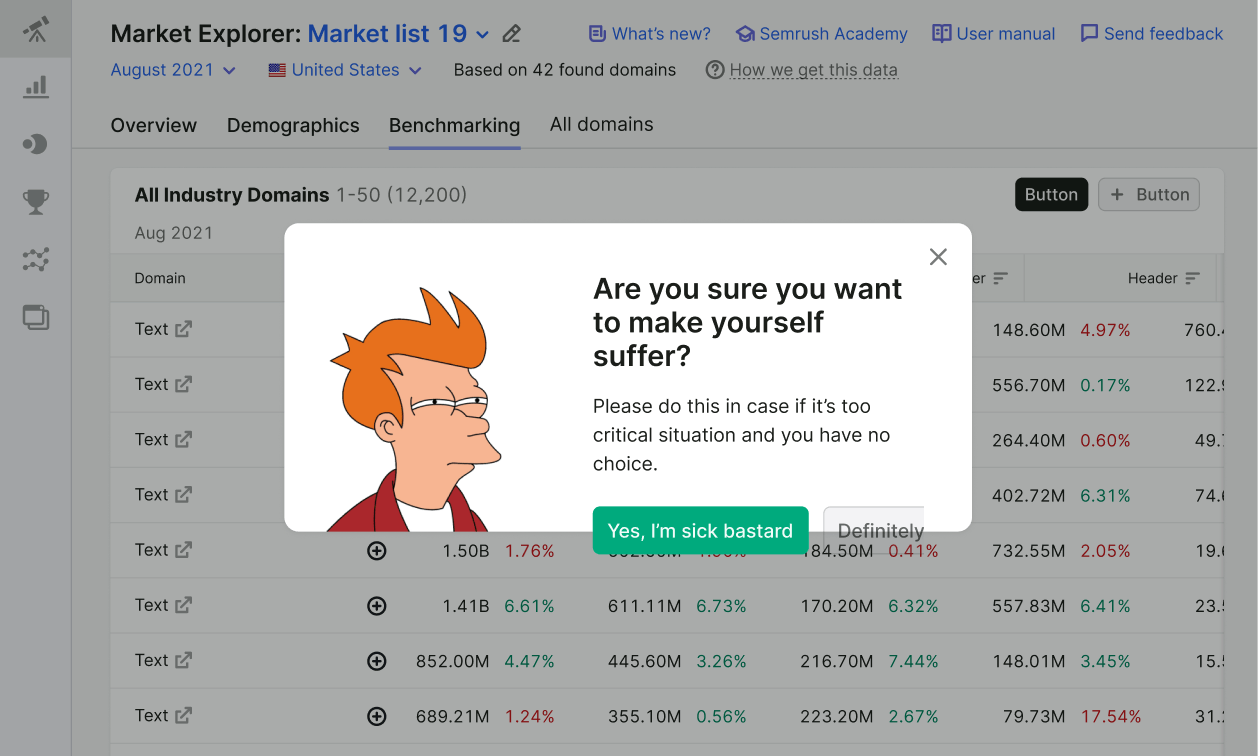

Overlay styles for Modal window
TokensAppearance example
--overlay-primary
Second overlay appears when opening a modal window inside another modal window, and uses --overlay-secondary token.

TIP

Use a modal window inside another modal window only if no other solution fits your case. Refer to an amazing Manifesto against the ubiquitous use of modal windows.

The modal window must have min-width of 320px for the desktop version.

Interaction ​

Opening a window ​

When user opens the window, keyboard focus should automatically go to the content of the modal window. If the modal window contains a form, the focus must go to the first input or interactive element.

Opening window inside window ​

When opening a modal window within another modal window, it is important not to close the previous modal window. Doing so can confuse users and create a sense that they are unable to navigate back to the previous window.

Closing window ​

User closes the modal window by using the following options:

  • Close icon;
  • CTA or "Cancel" button;
  • ESC key;
  • "Back" button in the browser (nothing changes on the parent page in this case);
  • clicking outside the Modal.Window area.

When the modal window is closed, the focus should return to its trigger.

If the potential consequences of accidentally closing the window are significant, please alert the user about the potential loss of information.

It is recommended to save the information entered by the user when closing and reopening the modal window. If it isn’t possible to do so, inform users that their entered data will be lost upon closing the window.

Loading ​

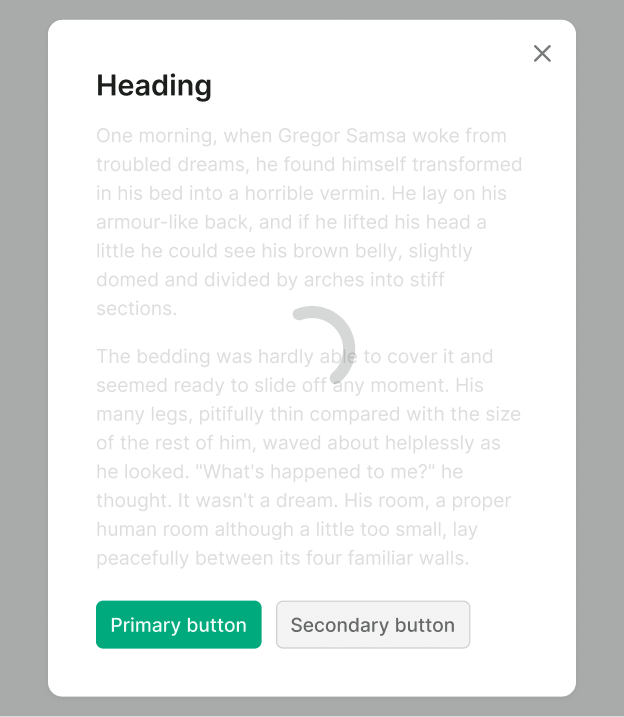

When loading or reloading content within the modal window, display the Spin component over the content.

Spin styles for this scenario:

  • Use the largest size for the spinner inside the modal window β€” XXL.
  • Center the spinner in relation to the content.
  • Optionally, add text to the spinner.

Positioning ​

The modal window is centered vertically and horizontally by default relative to the browser window.

If the content of the modal window requires a large size, modal window is positioned with 40px margins on all sides.

If the size of the modal window changes when the user interacts with it, it is recommended to anchor it to the top border with a 40px margin.

Changing browser size ​

Vertically ​

  • When the height of the screen increases, the modal window remains unscaled and stays centered.
  • When reducing the screen height, the window continues to be centered as long as it fits within the visible area. Once it reaches the minimum distance from the upper and lower edges of the browser, the window extends beyond the lower border, and scrolling becomes necessary.

Horizontally ​

Currently, when the browser width is reduced to 320px, the modal window is proportionally scaled down while maintaining the margins to the 12px. Simultaneously, the window occupies a larger portion of the viewport, shrinking proportionally to match the size of the device screen.

Refer to examples of the modal window to see how modal changes to fit the screen.

TIP

It is recommended to avoid using modal windows on mobile devices. However, if you use modal windows on mobile devices, leave a link to the parent page. If scrolling in modal window appears due to the amount of content, then it is recommend placing the window close button both at the top and at the end of such window, or fixing it in the header when scrolling.

10 guidelines to consider when using overlays/modals

Scrolling the window ​

If the height of the modal window exceeds the height of the browser window, it should be positioned with a 40px margin from the top border.

The content underneath the overlay shouldn't be scrollable.

Scrolling content in the window ​

Individual elements within the window, such as tables, can be scrolled. The scrolling functionality is described in ScrollArea.

Fixed areas during scrolling ​

If necessary, specific areas within the modal window can be fixed. For example, buttons within a window that contains a large amount of scrollable content.

Window title ​

When the modal window is intended to prompt a specific user action, provide a concise and clear title for the window, preferably consisting of no more than 3-4 words.

If the modal window is used for confirmation, the title should pose a question, and the action buttons should clearly answer that question.

Button usage in modal window ​

The alignment of the buttons should follow the same centering as the title.

It is advisable to limit the usage of main buttons within the modal window to a maximum of two.

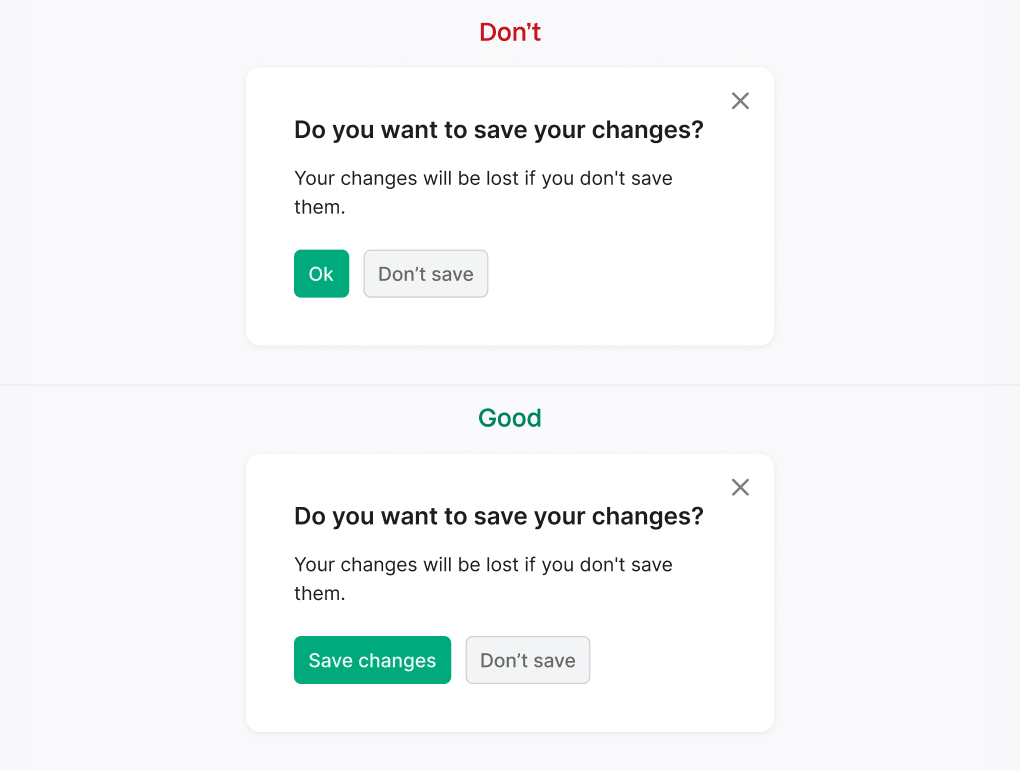

Avoid labeling the main button as "OK". Users may require additional time to comprehend the required action if the buttons and their functions are not clearly designated.
