SidePanel

Description ​

SidePanel is a component used for displaying sliding panels with content. It can also be referred to as a panel or drawer.

Use SidePanel when you need:

• To show sub-tasks, additional support information, and links that may be useful to the user while working with a report, a specific widget, or the entire product.
• To keep the user in the context of the page (even if the SidePanel has an overlay).

For example, you can use SidePanel as:

• A notification center for the whole website.
• A Help Center or News panel in products.
• "Panels" on mobile devices.

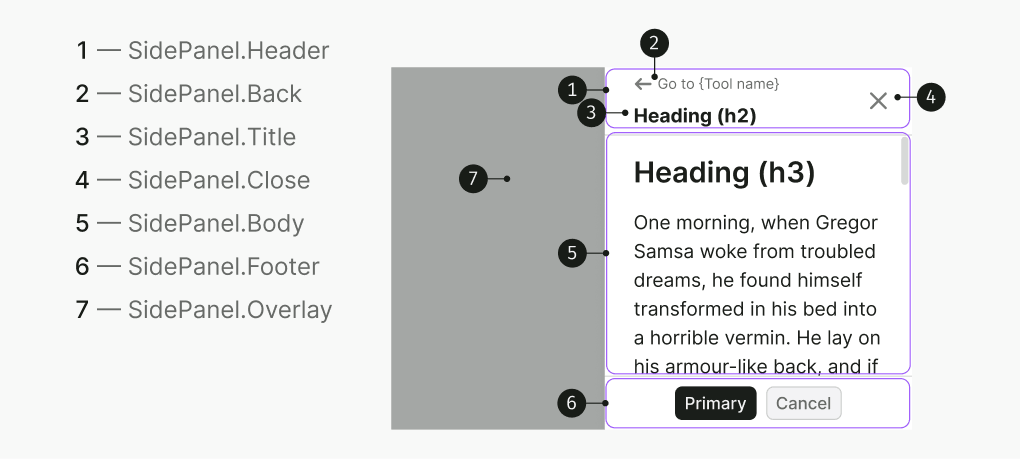

Component composition ​

Component consists of the following:

1. SidePanel.Header
2. SidePanel.Back
3. SidePanel.Title
4. SidePanel.Close
5. SidePanel.Body
6. SidePanel.Footer
7. SidePanel.Overlay

Trigger ​

The trigger for opening the SidePanel can be the following:

• A News icon in the main header of the website.
• Additional links in ProductHead.
• Controls that hide additional information.
• Charts that can be clicked to show additional information.
• On small screens, other controls can serve as triggers to open SidePanel.

Overlay ​

SidePanel with and without overlay

	Appearance example	Styles	When to use

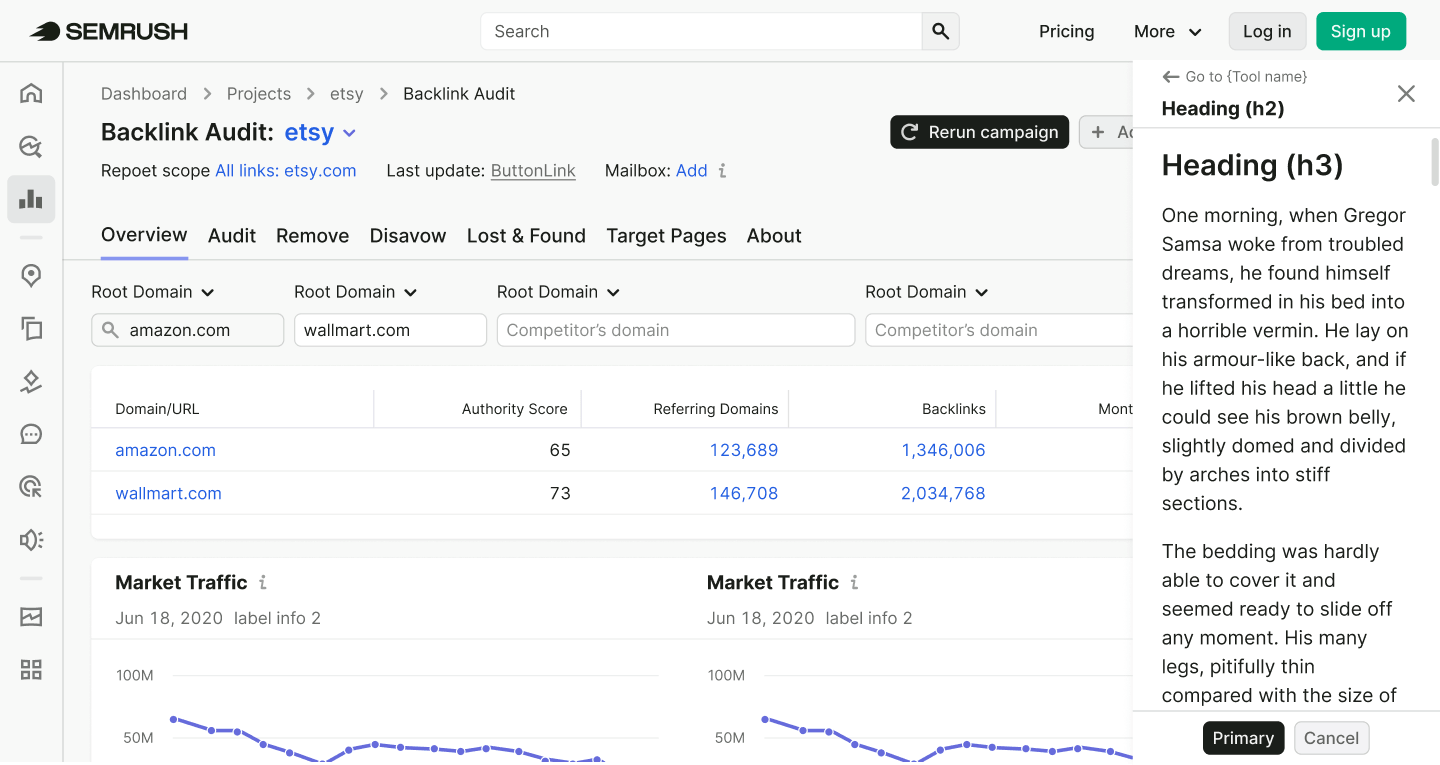

Without overlay		In this case the panel has only the shadow: box-shadow: 0px 1px 12px var(--box-shadow-popper). There is no overlay.	Use this version if you need to show additional information for a report/product/block.

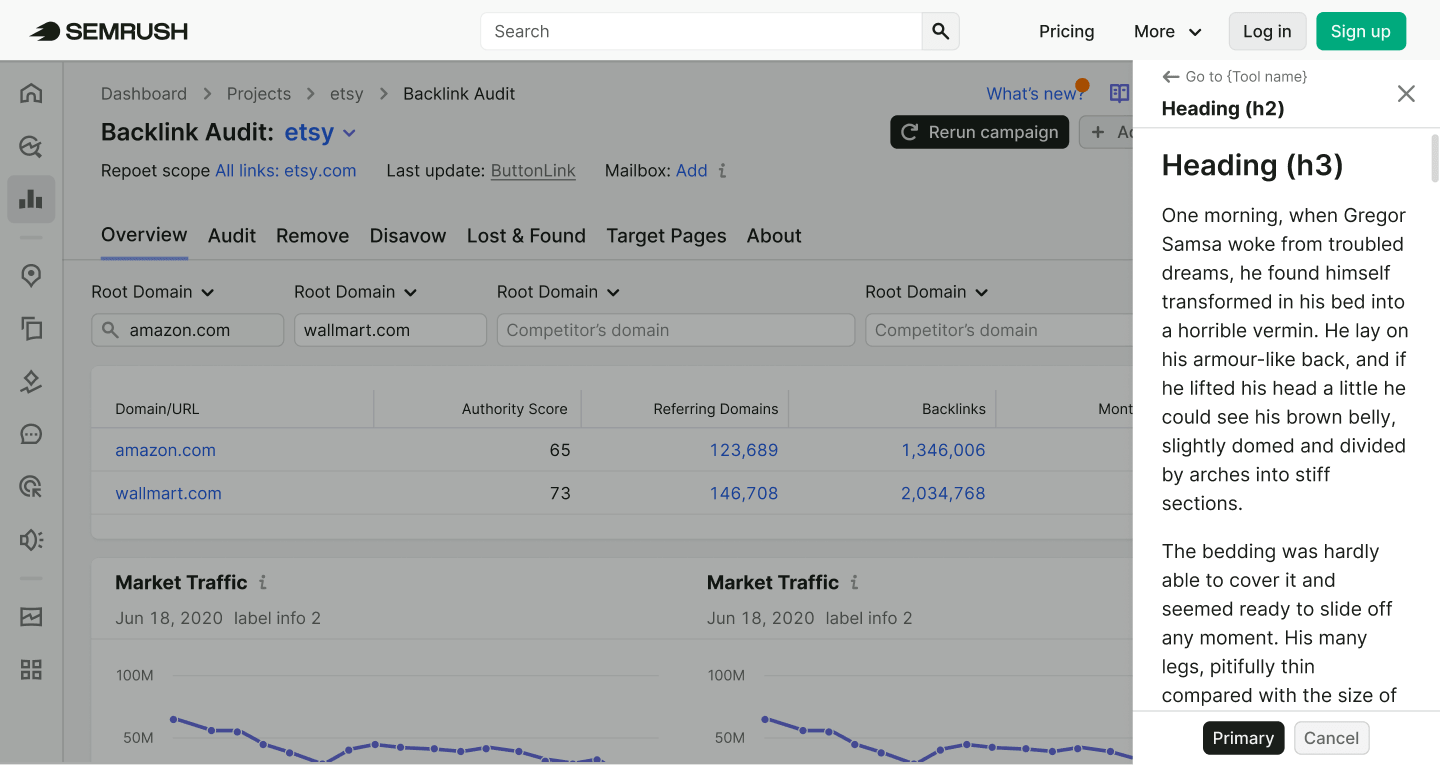

With overlay		In this case panel has an overlay with styles: background-color: var(--overlay-primary).	If you need to focus the user on information inside SidePanel, enable overlay.

Sizes and indents ​

Width ​

SidePanel has a fixed width that doesn't change when the browser window is resized. The default width of the panel is 256px. You can change it if necessary.

Container ​

The component has a default padding. It can be changed if necessary.

It can be changed, for example, when using SidePanel on a small screen where you want to reduce paddings.

SidePanel.Body margins ​

The padding between the title and content:

Default styles ​

Header ​

For the panel's title, use 16px text (--fs-300, --lh-300 tokens) with font-weight: var(--bold).

SidePanel.Header styles

Appearance example	Styles
	height: 52px, padding-bottom: var(--spacing-1x), align-items: center, border-bottom: 1px solid var(–-border-primary)
	The Close icon has an L size and uses --icon-secondary-neutral token for color. The click zone of the icon is 48px * 48px.

Content ​

General recommendations for SidePanel content styles:

• Choose the text size for the panel to maintain a hierarchy of headers in the content within SidePanel. If necessary, you can experiment and use your text size hierarchy within our typographic scale.

• Always pin the header and the footer when scrolling the content of the SidePanel.

Footer ​

You can place common controls for SidePanel content in the footer.

• Typically, any controls, CTA, or other elements like ProgressBar can be placed there.
• The recommended size of controls in the panel on the desktop is M. Depending on the context, use M or L controls in the panel on small screens.

Footer styles:

height: 44px;
padding: var(--spacing-2x) 0;
align-items: center;
border-top: 1px solid var(–-border-primary);

height: 44px;
padding: var(--spacing-2x) 0;
align-items: center;
border-top: 1px solid var(–-border-primary);

Interaction ​

Placement in the interface ​

• You can customize whether the SidePanel should open in the product area or over the entire website (as modal windows do). If the SidePanel refers to a specific product, it should be rendered in the product under the main header.
• The focus remains inside the SidePanel and doesn't move to the page content. You can navigate through the controls inside the SidePanel using Tab.

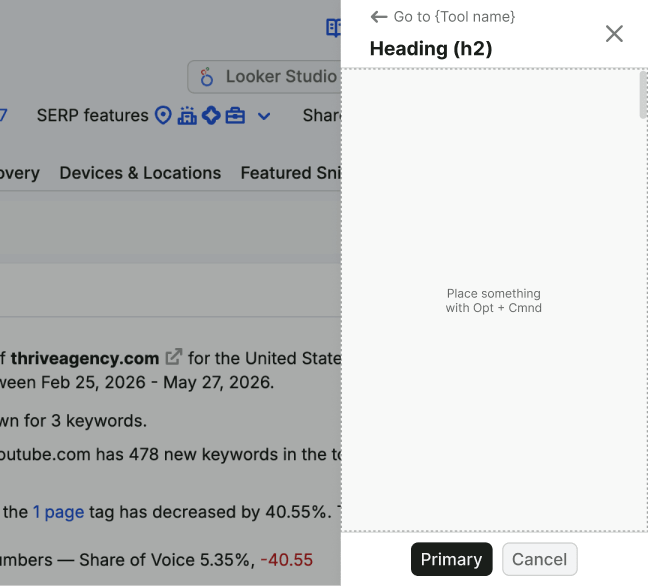

Page scroll ​

Page scroll is disabled by default. We recommend you to enable it only when SidePanel has some tips and additional information for the page, and no overlay is enabled.

SidePanel opening and closing ​

You can close the panel with:

• CTA control;
• Close icon;
• Clicking outside the area of the panel (at overlay), optional;
• Esc key.

SidePanel can be opened either by the user clicking on the corresponding trigger or by the system in special cases to draw attention to the information in the panel.

Animation of appearance and hiding ​

SidePanel opens and closes with the animation: transition: all 350ms ease-in-out.

What happens when the browser window size changes ​

• SidePanel has a fixed width that doesn't change when the browser window is resized. The default width of the panel is 256px. You can change it if necessary.
• On a 320px screen, SidePanel should not occupy more than 80% of the screen width so that the user can click outside of it and close it.

Edge cases ​

SidePanel should have a header in all cases.

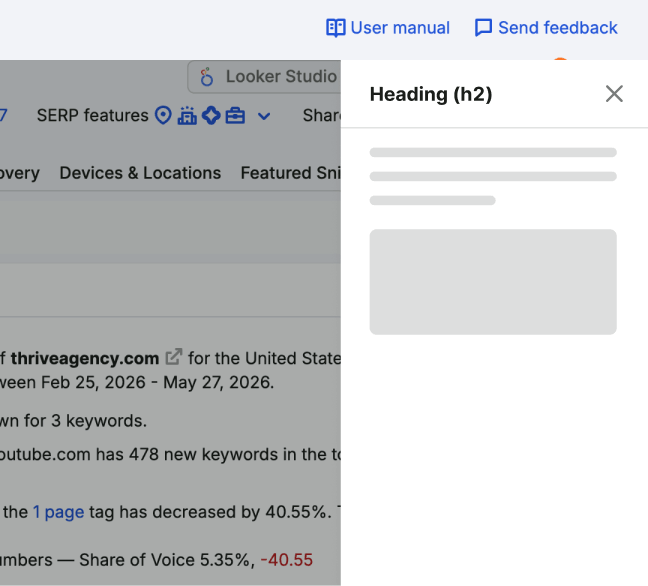

Initial load ​

At the initial load of the SidePanel content, show the content structure with Skeleton.

Reloading ​

When loading and reloading SidePanel content, show Spin with XL size in the center.

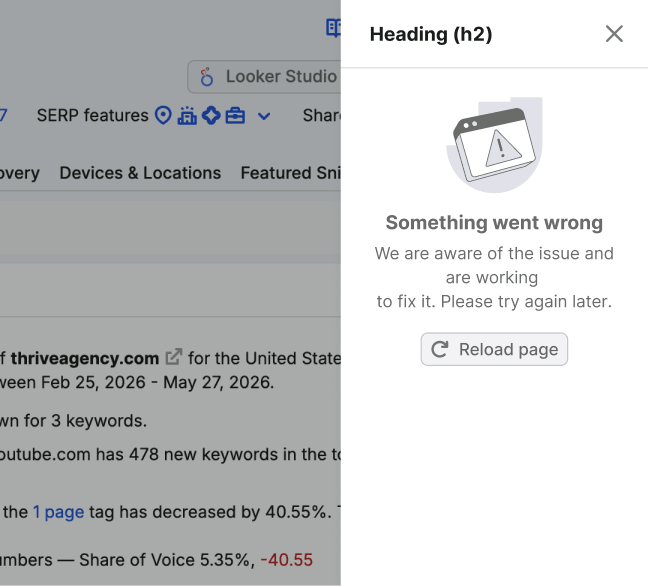

Error ​

If an error occurs during data loading, show the corresponding message and the "Try again" button to reload the SidePanel content.
